Audio
|
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
|
•Stavka
|
- Individual PCB Layers for R/L Audio Channel |
|
LAN
|
- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s |
|
•Stavka
|
- Realtek RTL8126 |
|
Wireless LAN
|
- 802.11be 2x2 Wi-Fi 7 Module |
|
•Stavka
|
- Supports IEEE 802.11a/b/g/n/ac/ax/be |
|
•Stavka
|
- Supports 2.4GHz/5GHz/6GHz* frequency band |
|
•Stavka
|
- Supports 160MHz channel bandwidth with 6GHz* frequency band |
|
•Stavka
|
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
|
•Stavka
|
- Supports Bluetooth 5.4 |
|
Supports MU-MIMO
|
* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. |
|
•Stavka
|
There is no driver available for Windows® 10. |
|
•Stavka
|
The availability of the 6GHz band will depend on the different regulation status of each country and region. |
|
•Stavka
|
It will be activated (for supported countries) through Windows® Update and software updates once available. |
|
CPU:
|
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
|
Chipset:
|
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
|
•Stavka
|
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
•Stavka
|
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
|
•Stavka
|
If M2_5 is occupied, PCIE2 will downgrade to x2 mode. |
|
CPU:
|
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
|
•Stavka
|
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: |
|
•Stavka
|
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* |
|
•Stavka
|
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
•Stavka
|
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
•Stavka
|
- 2 x SATA3 6.0 Gb/s Connectors* |
|
* Supports NVMe SSD as boot disks
|
M2_1 is the first priority for M.2 installation. |
|
•Stavka
|
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. |
|
•Stavka
|
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. |
|
•Stavka
|
You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2. |
|
•Stavka
|
If M2_3 is occupied, SATA3_1 and SATA3_2 will be disabled. |
|
RAID
|
- Supports RAID 0 and RAID 1 for SATA storage devices |
|
•Stavka
|
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
2 x USB4 Type-C (Rear)
|
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3) |
|
•Stavka
|
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1) |
|
Chipset:
|
- 1 x USB 3.2 Gen2x2 Type-C (Front) |
|
•Stavka
|
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4) |
|
•Stavka
|
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) |
|
•Stavka
|
- 8 x USB 2.0 (4 Rear, 4 Front) |
|
•Stavka
|
* All USB ports support ESD Protection |
|
3 x Addressable LED Headers**
|
- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
|
•Stavka
|
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
|
•Stavka
|
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
|
•Stavka
|
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector) |
|
•Stavka
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
•Stavka
|
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
|
•Stavka
|
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)**** |
|
•Stavka
|
- 1 x Dr. Debug with LED |
|
1 x Reset Button with LED
|
* Supports in total up to 12V/3A, 36W LED Strip |
|
•Stavka
|
** Support in total up to 5V/3A, 15W LED Strip |
|
•Stavka
|
*** CPU_FAN1 supports the fan power up to 1A (12W). |
|
•Stavka
|
CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). |
|
•Stavka
|
CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
|
•Stavka
|
**** Supports USB PD 3.0 up to 12V@3A (36W) charging |
|
1 x Optical SPDIF Out Port
|
- 2 x USB4 Type-C Ports (40 Gb/s)* |
|
•Stavka
|
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)** |
|
•Stavka
|
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) |
|
•Stavka
|
- 4 x USB 2.0 Ports |
|
•Stavka
|
- 1 x RJ-45 LAN Port |
|
1 x BIOS Flashback Button
|
- 1 x Line Out Jack (Gold Audio Jack) |
|
•Stavka
|
- 1 x Microphone Input Jack (Gold Audio Jack) |
|
•Stavka
|
* Supports USB PD 3.0 up to 5V@3A (15W) charging |
|
•Stavka
|
USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. |
|
•Stavka
|
** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power. |
|
Software
|

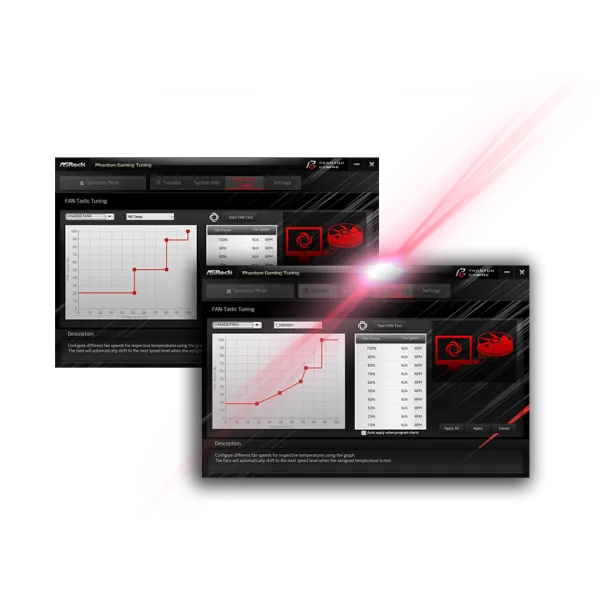

- ASRock Motherboard Utility (Phantom Gaming Tuning) |
|
ASRock Instant Flash
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
|
2 x SATA Data Cables
|
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit |
|
Certifications
|
- FCC, CE |
|
•Stavka
|
- ErP/EuP ready (ErP/EuP ready power supply is required) |
