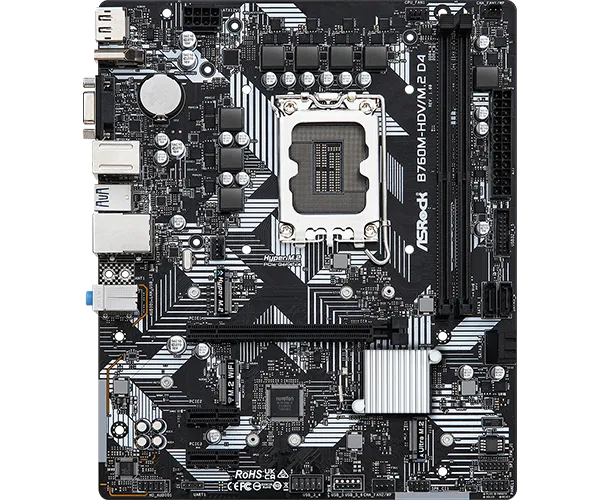

MB s1700 ASRock B760M-HDV/M.2 D4 90-MXBL40-A0UAYZ je proizvod iz kategorije Matične ploče.
Supports NVMe SSD as boot disks **If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
CPU - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset - Intel® B760
Memory - Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
Specifikacije
CPU
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B760
Memory
- Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
Max. capacity of system memory
64GB*
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
Audio
Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
• Stavka
- Realtek 8111H
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• Stavka
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• Stavka
- 4 x SATA3 6.0 Gb/s Connectors**
• Stavka
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- 1 x USB 3.2 Gen1 Type-C (Rear)
• Stavka
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• Stavka
- 5 x USB 2.0 (2 Rear, 3 Front)
• Stavka
* All USB ports support ESD Protection
1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• Stavka
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• Stavka
- 1 x 24 pin ATX Power Connector
• Stavka
- 1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• Stavka
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• Stavka
*CPU_FAN1 supports the fan power up to 1A (12W).
• Stavka
**CPU_FAN2/WP supports the fan power up to 2A (24W).
• Stavka
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
• Stavka
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

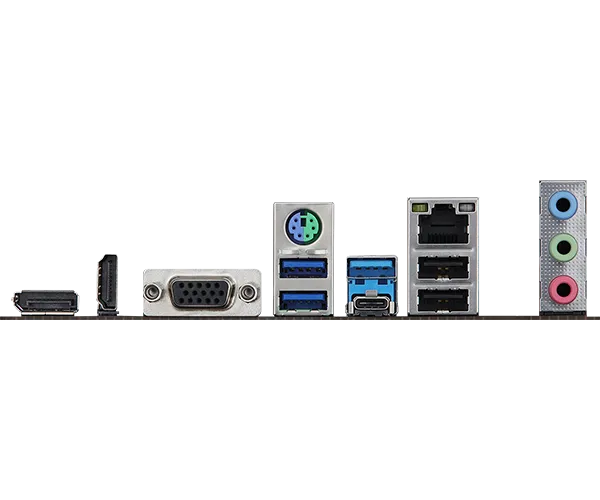

1 x HDMI Port
- 1 x DisplayPort 1.4
• Stavka
- 1 x USB 3.2 Gen1 Type-C Port
• Stavka
- 3 x USB 3.2 Gen1 Type-A Ports
• Stavka
- 2 x USB 2.0 Ports
• Stavka
- 1 x RJ-45 LAN Port
HD Audio Jacks
Line in / Front Speaker / Microphone
Software
- ASRock Motherboard Utility (A-Tuning)
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
• Stavka
- ErP/EuP ready (ErP/EuP ready power supply is required)
