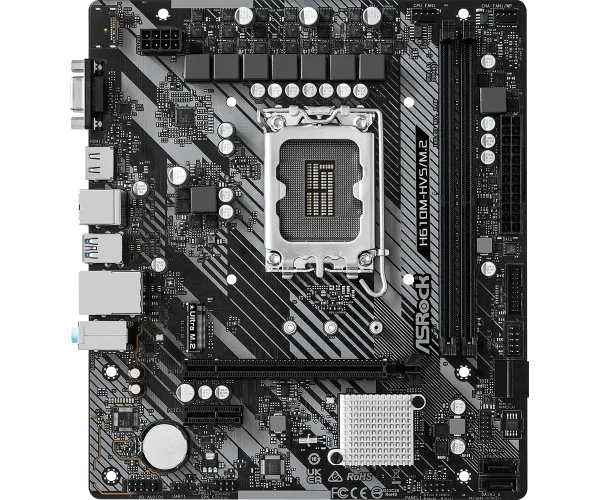

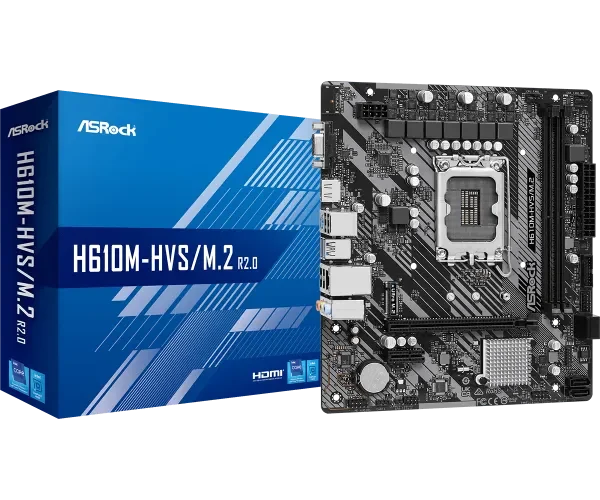

MB s1700 ASRock H610M-HVS/M.2 R2.0 90-MXBJJ0-A0UAYZ je proizvod iz kategorije Matične ploče.
-
*Supports NVMe SSD as boot disksSupports ASRock U.2 Kit
-
CPU- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
-
Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology
-
Chipset- Intel® H610
-
Memory- Dual Channel DDR4 Memory Technology
-
2 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 3200
Specifikacije
|
CPU
|
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
|
Supports Intel® Hybrid Technology
|
- Supports Intel® Turbo Boost Max 3.0 Technology |
|
Chipset
|
- Intel® H610 |
|
Memory
|
- Dual Channel DDR4 Memory Technology |
|
2 x DDR4 DIMM Slots
|
- Supports DDR4 non-ECC, un-buffered memory up to 3200 |
|
Max. capacity of system memory
|
64GB |
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
|
Graphics
|
- Intel® Xe Graphics Architecture (Gen 12) |
|
Dual graphics output
|
support HDMI and D-Sub ports by independent display controllers |
Audio
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) |
|
LAN
|
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
•Stavka
|
- 1 x Realtek RTL8111H |
|
Supports Lightning/ESD Protection
|
- Supports Energy Efficient Ethernet 802.3az |
|
CPU:
|
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* |
|
Chipset:
|
- 1 x PCIe 3.0 x1 Slot (PCIE1) |
|
Chipset:
|
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* |
|
•Stavka
|
- 4 x SATA3 6.0 Gb/s Connectors |
|
*Supports NVMe SSD as boot disks
|
Supports ASRock U.2 Kit |
|
1 x SPI TPM Header
|
- 1 x Chassis Intrusion and Speaker Header |
|
1 x CPU Fan Connector (4-pin)*
|
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** |
|
•Stavka
|
- 1 x 24 pin ATX Power Connector |
|
•Stavka
|
- 1 x 8 pin 12V Power Connector |
|
1 x Front Panel Audio Connector
|
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
|
•Stavka
|
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
•Stavka
|
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
|
•Stavka
|
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
•Stavka
|
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
|
1 x HDMI Port
|
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
•Stavka
|
- 4 x USB 2.0 Ports (Supports ESD Protection) |
|
•Stavka
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
HD Audio Jacks
|
Line in / Front Speaker / Microphone |
|
Software
|
- ASRock Motherboard Utility (A-Tuning) |
|
ASRock Instant Flash
|
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
|
Support CD
|
- Drivers, Utilities, AntiVirus Software (Trial Version) |
|
Accessories
|
- Quick Installation Guide, Support CD, I/O Shield |
|
2 x SATA Data Cables
|
- 1 x Screw for M.2 Socket |
|
Hardware Monitor
|
- Fan Tachometer: CPU, Chassis/Water Pump Fans |
|
Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
|
CPU, Chassis/Water Pump Fans |
|
Fan Multi-Speed Control
|
CPU, Chassis/Water Pump Fans |
|
CASE OPEN detection
|
- Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
|
Form Factor
|
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
|
OS
|
- Microsoft® Windows® 10 64-bit / 11 64-bit |
| Naziv i vrsta robe | Matične ploče |
|---|
| Model | Podatak nije dostavljen |
|---|
| Proizvođač | ASRock |
|---|
| Uvoznik | Podatak nije dostavljen |
|---|
| Zemlja porekla | Podatak nije dostavljen |
|---|
| Prava potrošača | Prava potrošača ostvaruju se u skladu sa važećim propisima Republike Srbije. |
|---|
